Description

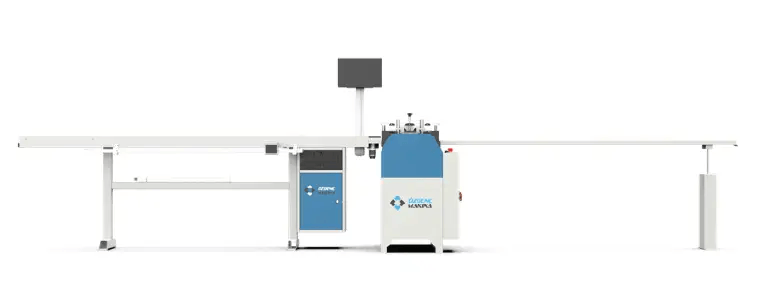

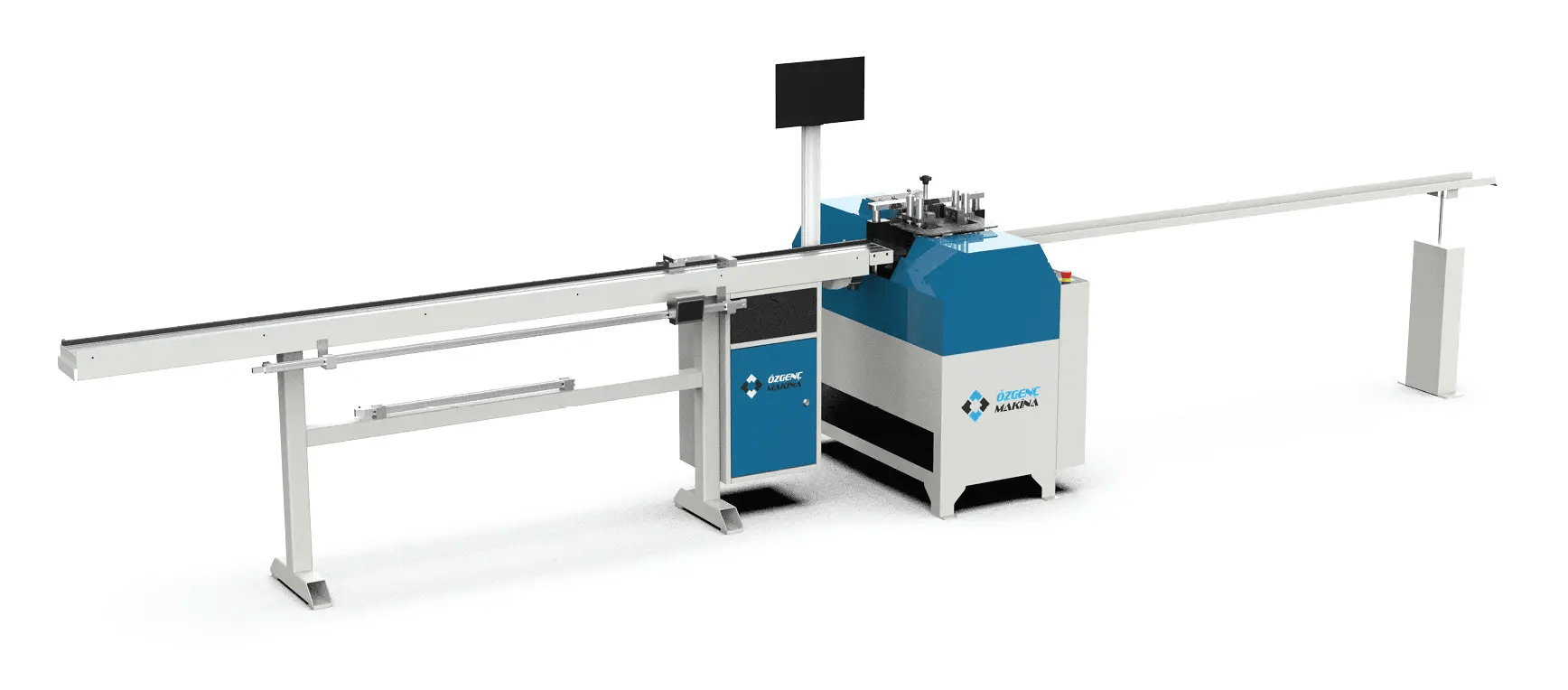

Automatic Moldless Glazing Bead Cutting Machine with Digital Conveyor
- Automatic 45° cutting of PVC glazing beads
- Mold-free operation capability
- 4 HSS saw blades (2 pieces of 200 mm – 2 pieces of 120 mm)
- Vertical pneumatic clamping system
- Easy mold adjustment via setting lever
- Double-sided 45° angled cutting system
- Quick-adjustable rotating stopper system
- Easy cutting speed adjustment using the regulator on the control panel

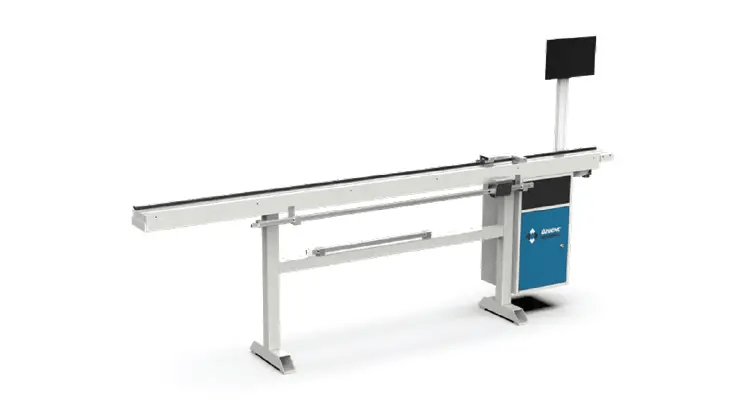

- 3 m digital measuring conveyor on the left and 2.5 m supporting conveyor on the right
- Servo-controlled stopper movement
- Operation via CSV file input or manual data entry
- High-speed and high-precision cutting thanks to servo-controlled conveyor
- 15.6” touch-screen Windows-based control system
- Remote connection for troubleshooting and maintenance
- Unlimited profile memory capacity
- Ability to add or remove parts from the cutting list
- Ability to transfer cutting files to the machine via USB, wireless, or wired network
- Parametric adjustment of conveyor opening distance, duration, and speed
Optional:
- Wireless radio frequency digital caliper
